CRAFTMASTER OVERHEAD DOORS available UNINSULATED and INSULATED

DOOR INSULATION (Optional) These models utilize 24-gauge exterior steel skin with 1-3/8" thick polystyrene foam insulation with a vinyl back cover.

CARRIAGE HOUSE DOOR PAGE

White                Almond           Sandstone           Brown             Evergreen

ACCESSORY PAGE

HOME PAGE

INSULATED DOOR PAGE

	Click for Additional Construction Information

	Click for Window Options

	Dick's Automatic Door Company Toledo, Ohio 419-472-2100

For a traditional-looking, heavy-duty steel door, the Craftmaster 84D (square panel) and 8424D (wide panel) models are truly among the best around. Available in four designer colors, it is an attractive top-of-the-line door that will both compliment the looks of your home and provide dependable protection for many years. Designed to accompany a wide variety of home styles, this heavy-gauge model is fit for a long life.   Pan Door (Definition) = Steel Outside. Insulation can be factory added at time of order. Model 84D  Raised Panel Pan Door.  Model 84DF  Woodgrain Flush Pan Door.  Model 8424D  Same as Model 84D except with wide panels (Ranch Style) (shown above).

	Dick's Automatic Door Company : 419-472-2100 : Toledo Ohio : Garage Door Repair : Garage Doors and Openers

UnINSULATED DOOR PAGE

CRAFTMASTER MODEL 84 & MODEL 8424: * Door sections are formed from heavy, 24-gauge galvanized draw quality steel. * Section joints are roll-formed into a tongue-and-groove design which produces a superior weather seal. * Bottom weather seal utilizes an aluminum retainer and extruded virgin vinyl. * Inside stiles are made of galvanized steel and stile holes are "dimpled" for increased holding power. * Extra-heavy paint system consists of .25 mil. primer with rust inhibitor and a .75 mil. coating of baked-on polyester paint in your choice of white, almond, sandstone, brown or evergreen . * Optional latching lock system opens easily from inside or outside. Model 84D is Un-Insulated w/Square Panels Model 8424D is Un-Insulated w/Wide Panels Model 84DF is Un-Insulated Flat Woodgrain Pattern Model 84D-Ins is Square Panel,  Insulated with 1-3/8" polystyrene insulation and a vinyl back cover.  R-value - 6.85 Model 8424D-Ins is Wide Panel, Insulated with 1-3/8" polystyrene insulation and a vinyl back cover.  R-value - 6.85 Model 84DF-Ins is Flat Woodgrain Pattern, Insulated with 1-3/8" polystyrene insulation and a vinyl back cover.  R-value - 6.85

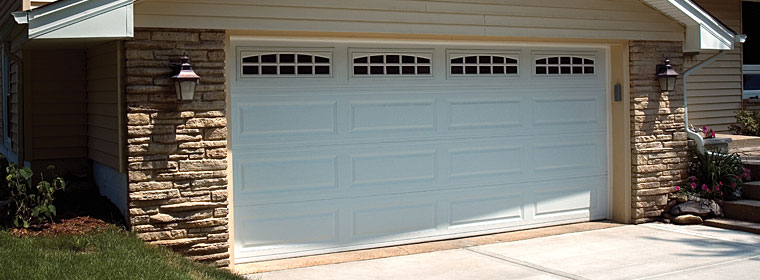

	8424D Wide Panel Design shown with Optional Windows
